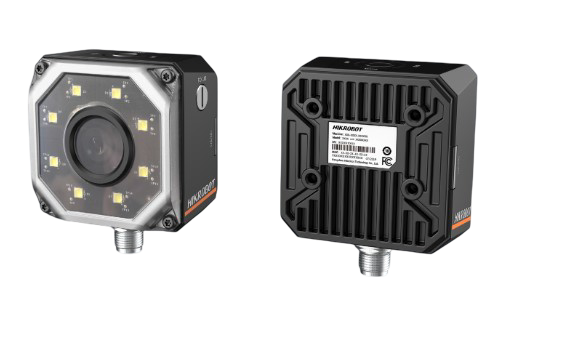

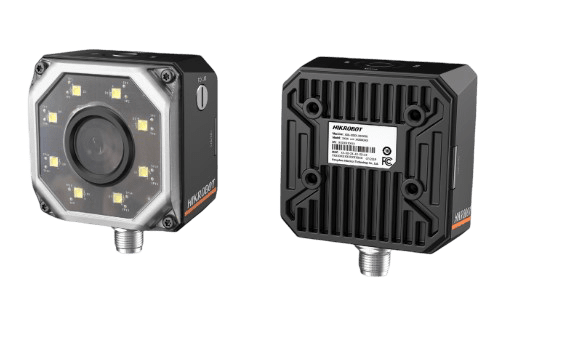

12mm Mechanical Autofocus len 1.6MP PRO Series Compact Industrial Code Reader

Key Feature

Adopts built-in deep learning algorithm to read codes with good robustness.
Adopts IO interfaces for input and output signals.
Supports multiple communication protocols, including TCP, Serial, FTP, PROFINET, etc.
Adopts CMOS sensor to acquire image data and provide high-quality image.
Supports RS-232 serial port and indicators displaying device status.

Specifications

Model	Product Model	MV-ID3016PM-12M-WBN
Model	Type	12mm Mechanical Autofocus len 1.6MP PRO Series Compact Industrial Code Reader
Performance	Symbologies	1D: Code 39, Code 93, Code 128, ITF 25, CodaBar, EAN, MATRIX 25, MSI, Industrial 25, China Post, Code 11 2D: QR Code, Data Matrix
	Max. frame rate	60 fps
	Max. reading speed	84 codes/sec
	Sensor type	CMOS, global shutter
	Pixel size	3.45 μm × 3.45 μm
	Sensor size	1/2.9″
	Resolution	1408 × 1024
	Exposure time	16 μs to 1 sec
	Gain	0 dB to 40 dB
	Mono/color	Mono
	Communication protocol	SmartSDK, TCP Client, TCP Server, UDP, Serial, FTP, PROFINET, Ethernet/IP, MELSEC, ModBus
Electrical feature	Data interface	Fast Ethernet
	Digital I/O	17-pin M12 interface: 3 inputs, 3 outputs, RS-232 I/O, top button trigger
	Power supply	24 VDC
	Max. power consumption	20 W@24 VDC (light source enabled)
Mechanical	Focal length	12 mm (0.5″)
	Lens mount	M12-mount, mechanical autofocus
	Lens cap	Transparent (optional polarization)
	Light source	Spotlight white (optional red/blue/IR)
	Indicator	PWR, LNK, STS, OK/NG
	Dimension	65.2 mm × 65.2 mm × 42 mm (2.6″ × 2.6″ × 1.7″)
	Weight	Approx. 250 g (0.6 lb.)
	Ingress protection	IP67 (with waterproof lens cap)
	Temperature	Working: 0 °C to 50 °C Storage: -30 °C to 70 °C
	Humidity	20% to 95% RH, non-condensing
General	Client software	IDMVS
General	Certification	CE, FCC, RoHS, KC
