Key Feature
- Supports high-speed focus adjustment for switching working distance.
- Compact design and small in size, and can be installed in narrow space.
- Adopts LED aiming light to aim targets.
- Adopts multiple IO interfaces and plug-in power interface for easy wiring.
- Supports multiple communication protocols, including TCP Server, Serial, FTP, TCP Client, Profinet, Ethernet/IP, MELSEC/SLMP, Modbus, UDP, and Fins.
Specifications

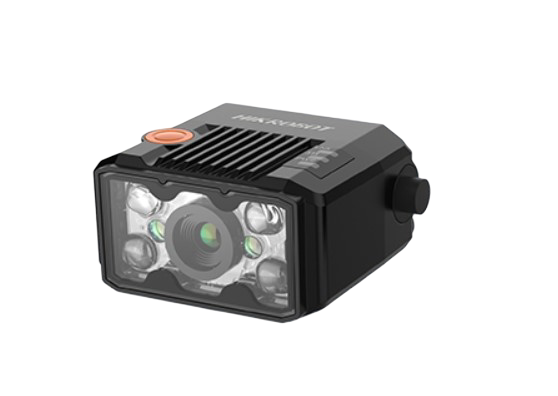

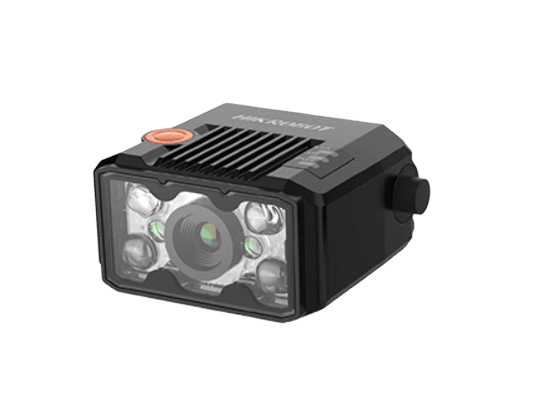

| Model | Product Model | MV-ID2016M-10T-RBP |
| Type | 1.6MP Ultra-Compact Industrial Code Reader | |
| Performance | Symbologies | 1D: Code 39, 93, 128, ITF 14/25, CodaBar, EAN, UPCA/UPCE, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode 2D: QR, GS1-QR, Data Matrix, GS1-DM, MicroQR, AZTEC, HanXin Stacked: PDF 417 |
| Max. frame rate | 60 fps | |
| Max. reading speed | 45 codes/sec | |
| Sensor type | CMOS, global shutter | |
| Pixel size | 3.45 μm × 3.45 μm | |
| Sensor size | 1/2.9″ | |
| Resolution | 1408 × 1024 | |
| Exposure time | 16 μs to 20000 μs | |
| Gain | 0 dB to 15 dB | |
| Mono/color | Mono | |
| Communication protocol | TCP Server/Client, Serial, FTP, Profinet, Ethernet/IP, MELSEC, Modbus, UDP, Fins | |
| Electrical feature | Data interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | 17-pin M12: 1× Input (Line 2), 1× Output (Line 3), 2× Configurable I/O (Line 0/1), RS-232 × 1. Trigger via side button supported. | |
| Power supply | 12 VDC to 24 VDC | |
| Max. power consumption | Approx. 4 W @ 12 VDC | |
| Mechanical | Focal length | 10 mm |
| Lens mount | M12-mount | |
| Working distance | 95 mm to 400 mm | |
| Ambient illumination | 0 lux to 50000 lux | |
| Indicator | PWR, LNK, STS | |
| Aiming system | Orange LED | |
| Dimension | 46 × 40 × 25 mm (1.8″ × 1.6″ × 1.0″) | |
| Weight | Approx. 135 g (0.3 lb.) | |
| Ingress protection | IP65 | |
| Temperature | Working: 0°C to 50°C | Storage: –30°C to 70°C | |
| Light source | Red, polarized | |
| Humidity | 20% RH to 95% RH (non-condensing) | |
| General | Client software | IDMVS |
| Certification | CE, RoHS, KC |
