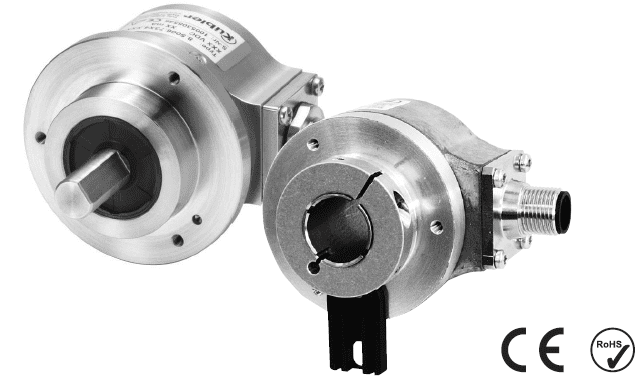

Kubler’s Sendix Base KIS50 / KIH50 (shaft / hollow shaft)

The encoders Sendix Base KIS50 / KIH50 offer a protection level up to IP65 and can be used with temperatures from -20°C up to +70°C. They are ideal for use in standard applications and in simple machines.

The Sendix Base KIS50 / KIH50 family also features our well proven Safety-LockTM system, allowing higher tolerance of possible installation errors and increasing the overall performance of this encoder.
Robust
Resistant zinc die-cast housing and protection up to IP65.
Wide temperature range, -20°C … +70°C.
Elimination of machine downtime thanks to sturdy bearing construction in “Safety-LockTM Design”
Flexible
Suitable connection variant for every specific case: cable connection, M12 and M23 connector.
Various mounting options.
Up to 5000 pulses per revolution.
Highlights
Safety-Lock
High Rotational Speed
Temperature Range = -20 to 70 degree celsius
High Protection Level
High Shaft Load Capacity
Shock/Vibration Resistant
Magnetic Field Proof
Short-Circuit Proof
Reverse Polarity Protection
Optical sensor
