Smart Vision Sensors & Cameras

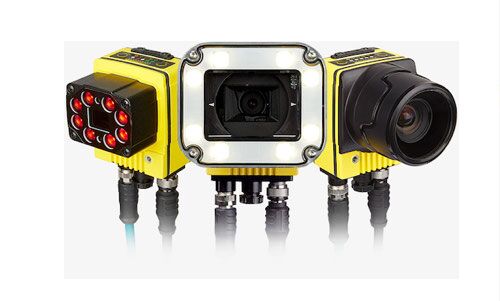

IS7000 Smart Vision Sensor
Key Features
- Powerful vision system that performs fast and accurate inspections.
- Compact footprint easily fits into space-constrained production lines.
- Unique, modular design is highly field-customizable to your application requirements.
- Internal and external power/control lighting options.
- Highly visible pass/fail LED indicator light ring around the camera body.
- Resolutions ranging from VGA to 5MP.
- Job/Program memory: 7.2 GB on board + 8 GB on SD card.
Applications
- Part absence / presence.
- To verify that an integrated circuit has been soldered onto the PCB in the correct orientation.
- Checking the dial on a thermostat to confirm that it is in the correct position.
- Presence of an O-ring installed in the proper location before final packaging.
- Checking for the presence of quality control (QC) marks, on automotive parts, before moving to the next stage of assembly.
- Fill level and cap assembly detection on bottles.
- Verify that the correct fruit snack flavor is present, before packaging.
- To verify that the correct number of staple strips have been added in the carton.
- To verify that the pump dispenser is in the locked position before the bottle is packed into a carton.
- Inspection of a bottle to confirm that the cap and bottle colors match.
- Blister pack inspection.
