ABR-3000 & ABR-7000

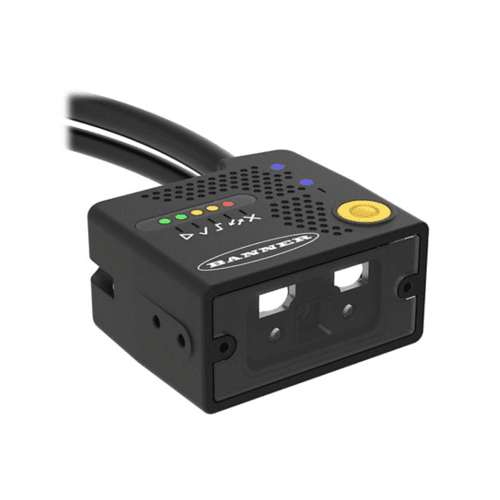

ABR-3000 & ABR-7000 Barcode Scanners & Readers

By utilizing advanced barcode reading technology to solve problems that traditional bar code scanners do not address, the ABR-3000 & ABR-7000 Barcode Scanners and Readers of Unseen ERA are built for high-quality, quick decoding of bar codes in extremely demanding environments and on very difficult bar codes. Both the ABR-3000 and the ABR-7000 can read a full spectrum of One-Dimensional, Two-Dimensional, Stacked, and Postal Bar Codes, even when the bar code is damaged, out of focus, or printed with poor ink contrast; when bar codes have been directly marked onto products and creating obstacles between the scanner and the product; as well, the ABR scanners are used with the latest systems of automation equipment.

With a compact size, durable metal casing, advanced precision optics, and flexible communication methods, the ABR series provides the exact solution to any manufacturer who is interested in increasing their ability to trace products throughout their supply chain, to improve their quality control abilities and to enhance their production efficiency in an automated line.

Advanced Barcode Readers for Difficult Applications

Where traditional bar code scanners are not capable of accurately reading damaged or misprinted bar codes, the ABR-3000 and ABR-7000 excel at reading bar codes printed on shiny materials, that are on surfaces that do not lay flat, and on products that have inconsistent quality throughout a batch of items. In addition, they will read and process multiple bar codes from multiple products, regardless of whether the product has been turned in different directions, has been placed at different height levels, or has been packed in different styles. If you are involved in Packaging, Logistics, Automotive, Pharmaceutical, or Electronics Manufacturing, the ABR series of scanners will provide consistent and high-quality performance.

For Industrial Uses, Rugged Design, Minimally Compact

Designed for difficult environments, the ABR-3000/A and ABR-7000/A scanners provide an extremely tough metal housing that meets the requirements of IP67 (Ingress Protection). They can withstand environments containing moisture, dust, and vibration, while still providing a compact footprint that makes it easy to mount in small or restrictive applications;

Easy Installation — Quick Setup

Integration is key for Unseen ERA; therefore, within minutes of receiving shipment, the installation technicians will be able to set up the scanners into their respective systems using the internal push-button controls, or using Barcode Manager, Banners free configuration software installed on a computer. The configuration process is very easy using the push buttons on the scanner, and through the Barcode Manager you can make adjustments to all scanner parameters. You will also find advanced tools for fine-tuning scanner performance provided through the Barcode Manager.

The scanner has an embedded web server that provides image capture, statistical data, and scanner status information via any network.

Compact Size, Integrated Lighting and Adjustable Lens

The ABR-3000 and ABR-7000 come equipped with integrated LED lighting and a quick-to-focus lens that allows for the maximum amount of application flexibility in one compact package with a variety of lens options, including autofocus lenses adjustable via software, that makes installation and setup extremely quick and easy for multiple reading distances and fields of view.

What are the Key Specifications of ABR-3000 & ABR-7000 Barcode Scanner?

Specification	Details
Barcode Types	1D, 2D, Stacked, Postal
Read Capability	Damaged, low-contrast, DPM, distorted codes
Multiple Code Reading	Yes
Variable Product Height	Supported
Housing	Compact metal
Protection Rating	Up to IP67
Lighting	Integrated LED
Focus	Adjustable / Autofocus
Configuration	Push buttons or PC software
Software	Barcode Manager (Free)
Interfaces	Ethernet, Serial, USB
Web Server	Embedded monitoring interface
IIoT Ready	Yes

Industrial Connectivity & IIoT-Ready Communication

The ABR-3000 & ABR-7000 support multiple factory communication protocols, including:

• Ethernet
• Serial
• USB

Supported Barcode Symbologies

1D & Stacked Codes

• PDF417 (Standard and Micro)
• Code 128 (GS1-128)
• Code 39 (Standard and Full ASCII)
• Code 32
• MSI
• Standard 2 of 5
• Matrix 2 of 5
• Interleaved 2 of 5
• Codabar
• Code 93
• Pharmacode
• UPC (EAN-8/13, UPC-A/E)
• GS1 DataBar Family
• Composite Symbologies

2D Codes

• Data Matrix ECC 200 (Standard, GS1, Direct Marking)
• QR Code (Standard and Direct Marking)
• Micro QR Code
• MaxiCode
• Aztec Code

Postal Codes

• Australia Post
• Royal Mail 4-State Customer Code
• KIX Code
• Japan Post
• PLANET
• POSTNET
• POSTNET (+BB)
• Intelligent Mail
• Swedish Post

Typical Applications

• Automated packaging and labelling lines
• Direct Part Marking (DPM) applications
• Logistics and warehouse automation
• Multi-barcode product identification
• Variable-height product scanning
• High-speed production and inspection systems

Why Choose Unseen ERA for Barcode Scanners & Readers?

Unseen ERA has everything that you need. Our products are designed specifically for today’s industrial automation world based on our experience and understanding of how these environments operate.

We have created both the ABR-3000 and ABR-7000 barcode scanners with the same emphasis on durability, quality, and reliability as all other Unseen products. These scanners incorporate innovative software solutions and state-of-the-art imaging technology to enable them to perform in accordance with the standards established by Industry 4.0.

If you’re looking to utilize an accurate, flexible, and reliable scanning solution, the ABR series of barcode scanners is the best option for your Industrial Automation System.

Frequently Asked Questions – ABR-3000 & ABR-7000 Barcode Scanners

Question 1: What types of barcodes does the ABR-3000 & ABR-7000 scan?

Answer: The ABR-3000 & ABR-7000 read standard 1D and 2D, as well as postal and stacked barcode types. In addition, the two scanners decode QR codes, Data Matrix codes, PDF417, GS1-barcode formats and direct part marking codes.

Question 2: Can these barcode scanners decode damaged or low-quality barcodes?

Answer: Yes. The ABR-3000 & ABR-7000 barcode scanners are built for accurate decoding of damaged, distorted, low-contrast and tough-to-read barcodes. These scanners are perfect for industrial environments that often create problems with barcodes.

Question 3: Can the ABR barcode scanners work in a tough industrial environment?

Answer: Yes. Both the ABR-3000 and ABR-7000 are manufactured with rugged metal casings and have protection ratings up to IP67 to protect against dust, moisture, and physical abuse.

Question 4: Will the ABR series barcode scanners communicate with IIoT and Smart Factory systems?

Answer: Yes. Both ABR-3000 and ABR-7000 can connect via Ethernet and size to use an embedded web-server. This allows for the collection of data for IIoT purposes, allows users access to remotely monitor a scanner, and provides instant insights into the performance of the scanners through access to live data.
